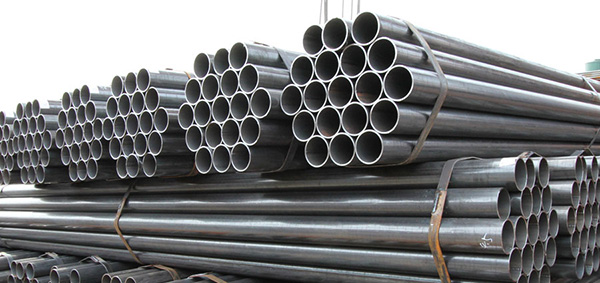

PIPES
Namron offers extensive range of seamless and welded pipes in all grades. We source Carbon Steel, stainless steel, duplex, Ductile Iron pipes, etc in varied sizes. Pipes supplied by us are industry standard approved and certified.
Seamless Pipes
Line Pipes & Low Temperature Service Tubes
Specification & Material Grades
- ASTM/ASME A/SA106 Grade A, Grade B, Grade C
- ASTM/ASME A/SA53 Grade A, Grade B
- ASTM/ASME A/SA333, SA334 Grade 6
- API 5L B, X-42, X-46, X-52, X-60, X-65, X-70
- ASTM/ASME A/SA312 TP304/304L, TP316/316L
- DIN 1629/2448 ST 37.0, 44.0, 52.0
- DIN 2391 ST 35.0, 45.0, 52.0
- DIN 2440, 2441 ST 33
- DIN 17171/2448 ST 37.0, 44.2, 44.3, 52.3
- DIN 17172/2448 ST E210.7, 240.7, 290.7, 320.7
- JIS G3444 ST K 290, 400, 500
Heat Exchanger and Boiler Tubes
Specifications & Material Grades
- ASTM A179, ASTM A192
- ASTM A210 GR. A-1, C
- ASTM A213 GR. T-11, T-12, T-22
- ASTM A335 GR. P-11, P-12, P-22
- DIN 17175 ST 35.8, 45.8, 15Mo 3, 13CrMo4 4, 10CrMo9 10
- JIS G3461 STB 340, 410, JIS G3462 STBA 22, 23, 24
Product Offering:
Sizes & Dimensions:
- OD: 1/8” (3mm) to 24” (610mm)
- Wall Thickness: 1.6mm up to 36mm (According to OD)
- Fixed Length: 6m & 12m (with Tolerance)
- SRL (Single Random Length): 4.8m to 6.7m
- DRL (Double Random Length): 10.5m to 12.5m
Welded Pipes: ERW, EFW, LSAW Pipes
Specification & Material Grades:
- ASTM/ASME A/SA53 Grade B
- API 5L GR. A & B, X-42, X-46, X-52, X-60, X-65, X-65
- ASTM A53 GR. A & B
- DIN 1626/2458 ST 37.0, 44.0, 52.0
- ASTM/ASME A/SA358 TP304/304L, TP316/316L
- DIN 2440, 2441 ST33
- DIN 1628 ST 37.4
- DIN 17100 ST 44.2
- DIN 17172 ST E210.7, 240.7, 290.7, 320.7
- BS 3601 GR. 430, GR. 360
Product Offering:
Size & Dimensions:
- ERW / HFI– OD: ½” – 24”, Wall Thickness –0.8mm - 14mm, SCH 5S – SCH XXS
- LSAW/SPIRAL SAW – OD: 16”-120”, Wall Thickness – 6.5mm – 60mm, SCH 5S – SCH XXS
- Fixed Length: 6m – 12m
- Single Random Length: 4.8m – 6.7m
- Double Random Length: 10.5m – 12.5m
